M3X Replacement Plates & Gaskets for Alfa Laval

Item No.: M3X

SHINEHEAT supplies independent aftermarket replacement plates & gaskets for Alfa Laval M3X heat exchangers.

INQUIRY PDF Format

Description

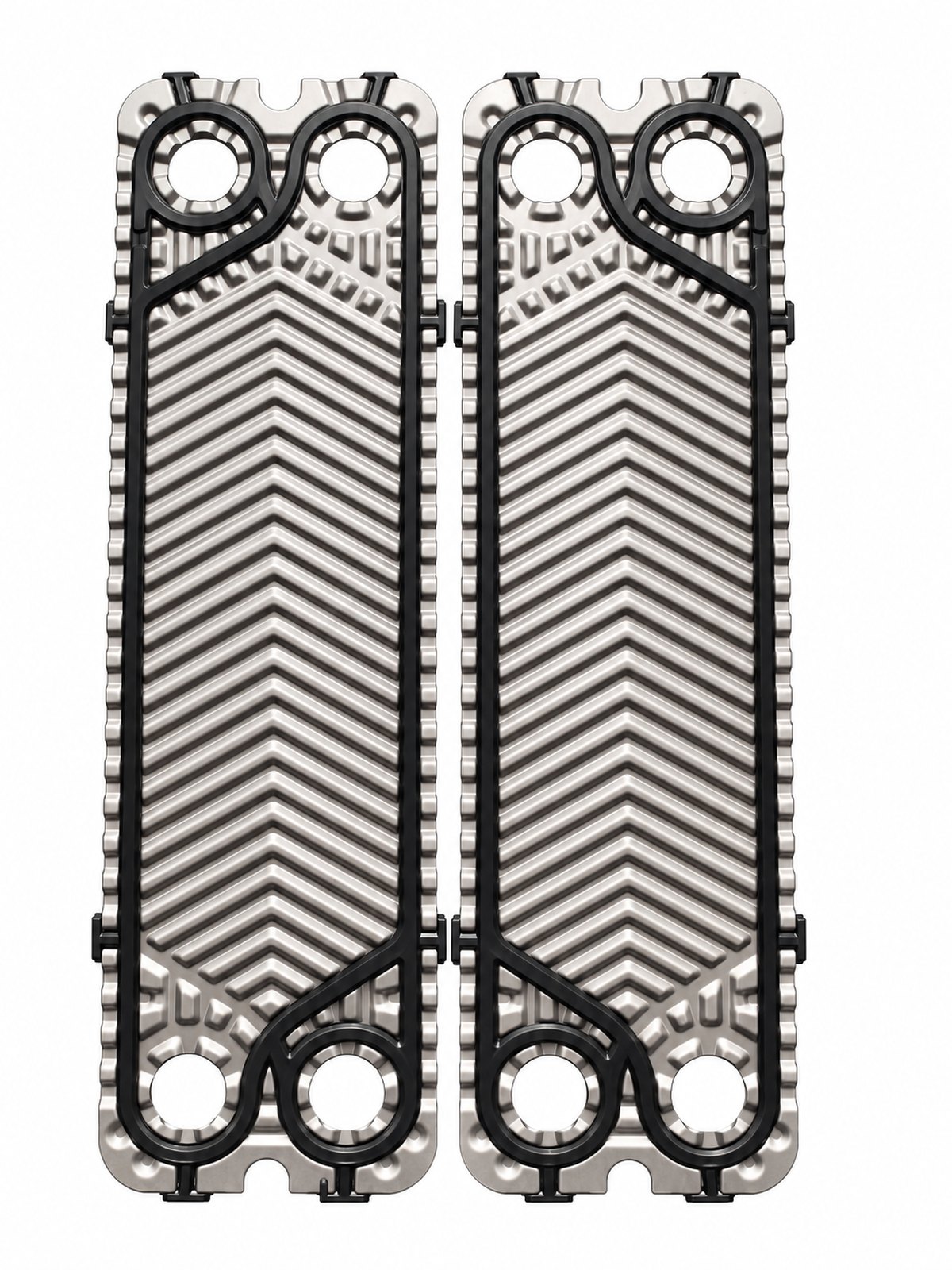

M3X Alfa Laval replacement part display — M3X part presentation image enhanced from a supplied photograph. Confirm the final configuration from the existing part and approved drawing.

M3X replacement plates & gaskets

SHINEHEAT supplies independent aftermarket replacement plates & gaskets for Alfa Laval M3X heat exchangers.

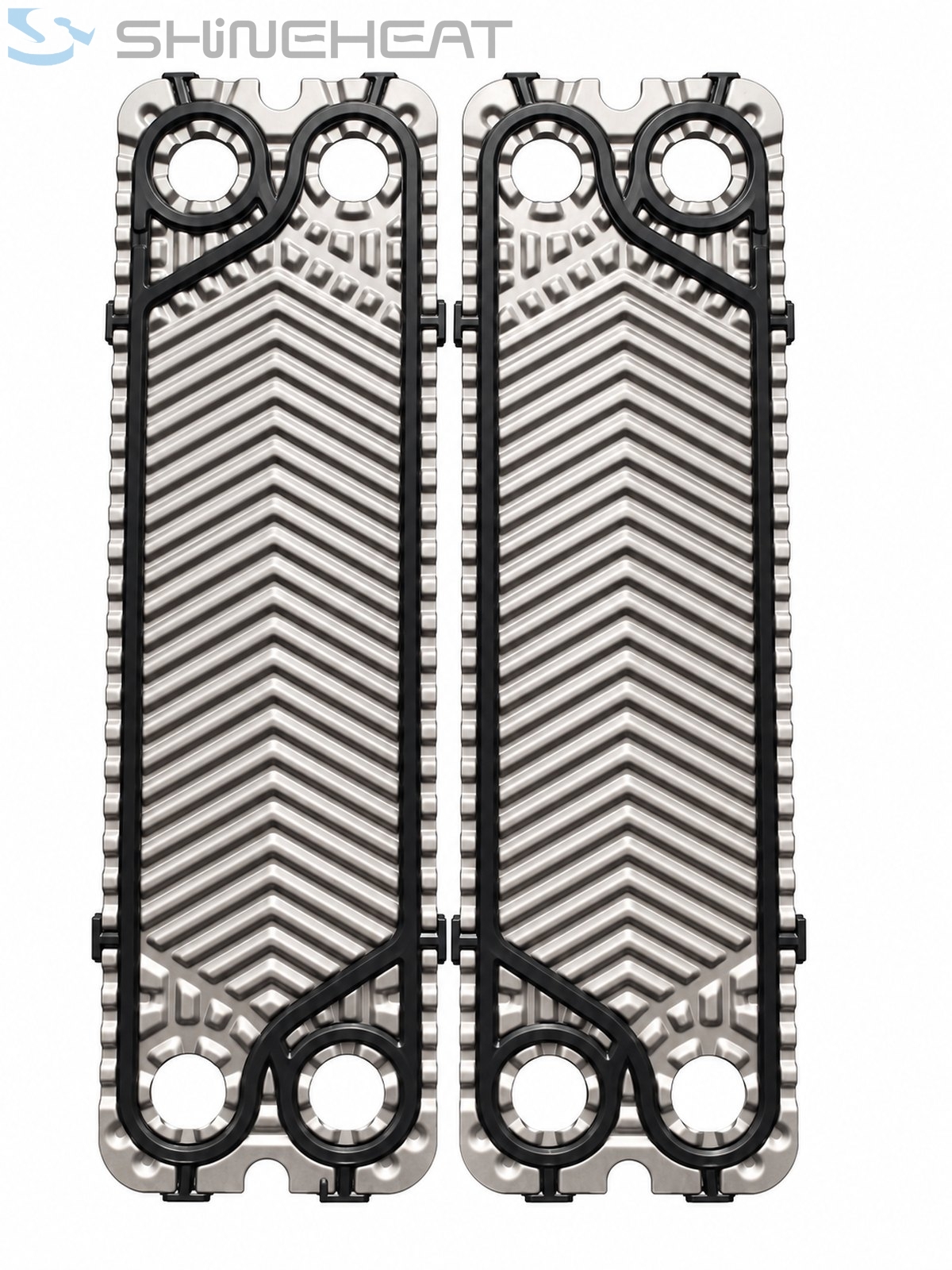

Two narrow plate-and-gasket configurations are shown. Keep the sealing routes distinct and confirm the required plate position, gasket attachment and complete M3X marking.

Enquire about M3X

Match your installed parts

Send the nameplate and full plate code, photographs of both faces and the sealing groove, plus the required quantities. Material and configuration are reviewed for your service conditions.

Information needed for your M3X quotation

Equipment nameplate, complete model and plate marking, including pattern and variant.
Plate and gasket photographs, opening arrangement, sealing groove and attachment details.
Overall dimensions, port centre distances, port diameter, plate material and thickness.
Plate arrangement or GA drawing, available calculation sheet or data sheet.
Operating fluids, temperatures, pressures and cleaning conditions for material review.
Required quantities, delivery country and requested date.

Before ordering

Original equipment reference	Alfa Laval M3X
Parts scope	Independent aftermarket replacement plates & gaskets
Configuration and material	To be confirmed against the existing component, drawings and service conditions
Quantity and delivery	Availability and lead time are reviewed for the requested quantity and destination

M3X replacement parts questions

Are these original Alfa Laval parts?

SHINEHEAT supplies independent aftermarket replacement parts. The brand and model identify the original equipment reference and do not imply OEM manufacture or affiliation.

Is the model code enough to confirm compatibility?

No. The full code, pattern, dimensions, opening arrangement, gasket profile and material must also be checked.

Can the display image be used for dimensional approval?

No. The image is a presentation reference. Use the existing part, measured dimensions and approved drawings for final matching.
