O034ES Replacement Plates & Gaskets for SPX APV

Item No.: O034ES

SHINEHEAT supplies independent aftermarket replacement plates & gaskets for SPX APV O034ES heat exchangers.

INQUIRY PDF Format

Description

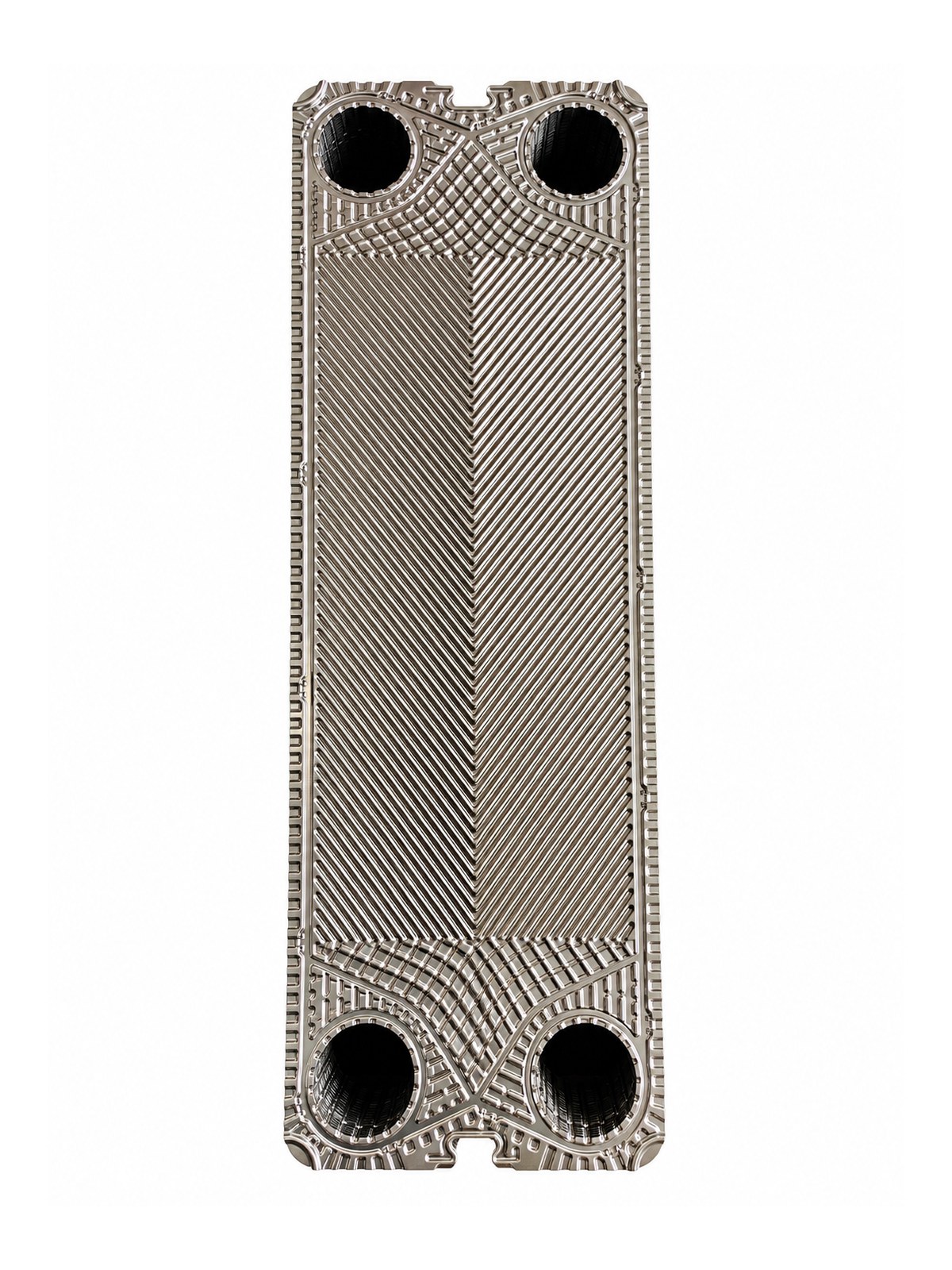

O034ES SPX APV replacement plates & gaskets display — O034ES presentation image enhanced from a supplied photograph. Use the existing component and approved drawings for final matching.

O034ES replacement plates & gaskets

SHINEHEAT supplies independent aftermarket replacement plates & gaskets for SPX APV O034ES heat exchangers.

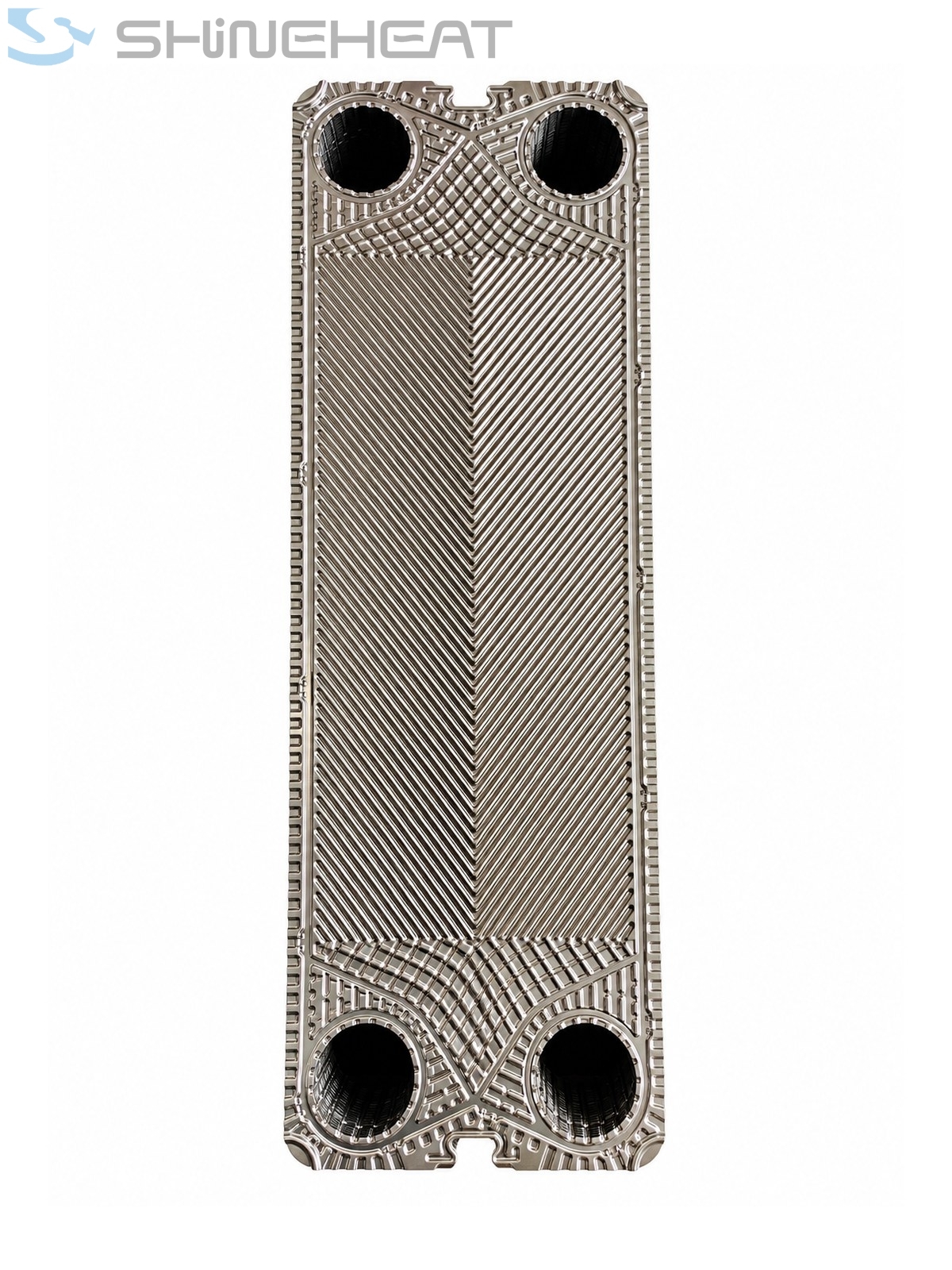

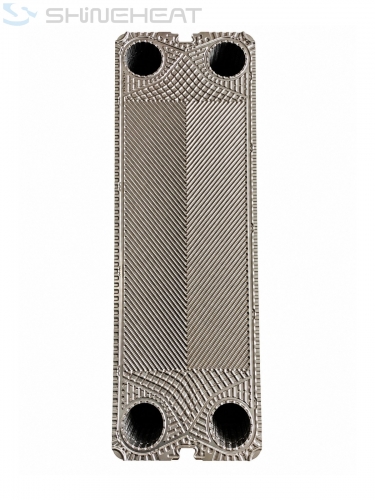

The plate reference shows four open ports, a central chevron field and diamond-pattern distribution zones. The supplied gasket photograph is a bundled set; final gasket geometry must be checked against an individual installed component. O034ES remains separate from O034E and Q034E.

Enquire about O034ES

Match your installed parts

Send the nameplate and full plate code, photographs of both faces and the sealing groove, plus the required quantities. Material and configuration are reviewed for your service conditions.

Information needed for your O034ES quotation

Equipment nameplate, complete model and plate marking, including pattern and variant.
Plate and gasket photographs, opening arrangement, sealing groove and attachment details.
Overall dimensions, port centre distances, port diameter, plate material and thickness.
Plate arrangement or GA drawing, available calculation sheet or data sheet.
Operating fluids, temperatures, pressures and cleaning conditions for material review.
Required quantities, delivery country and requested date.

Before ordering

Original equipment reference	SPX APV O034ES
Parts scope	Independent aftermarket replacement plates & gaskets
Configuration and material	To be confirmed against the existing component, drawings and service conditions
Quantity and delivery	Availability and lead time are reviewed for the requested quantity and destination

O034ES replacement parts questions

Are these original SPX APV parts?

SHINEHEAT supplies independent aftermarket replacement parts. The brand and model identify the original equipment reference and do not imply OEM manufacture or affiliation.

Is the model code enough to confirm compatibility?

No. The full code, pattern, dimensions, opening arrangement, gasket profile and material must also be checked.

Can the display image be used for dimensional approval?

No. The image is a presentation reference. Use the existing part, measured dimensions and approved drawings for final matching.
