Independent aftermarket support for VT40M plates and gasket sets, with geometry and service-condition review before supply.

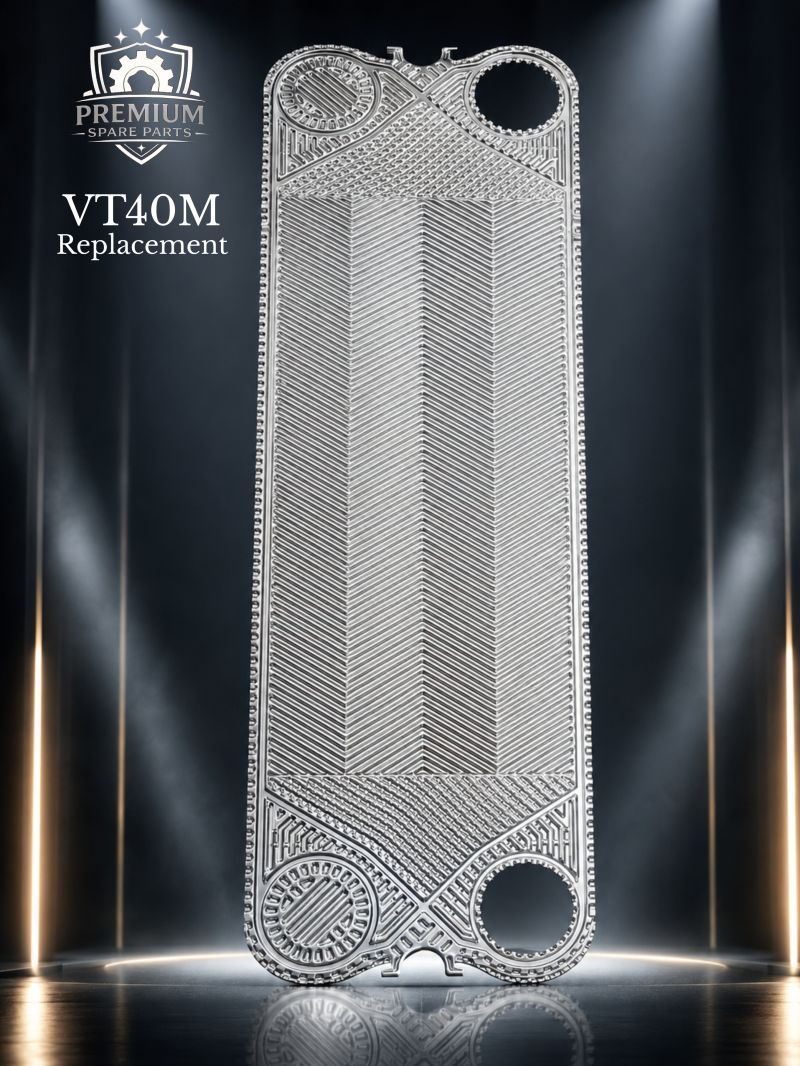

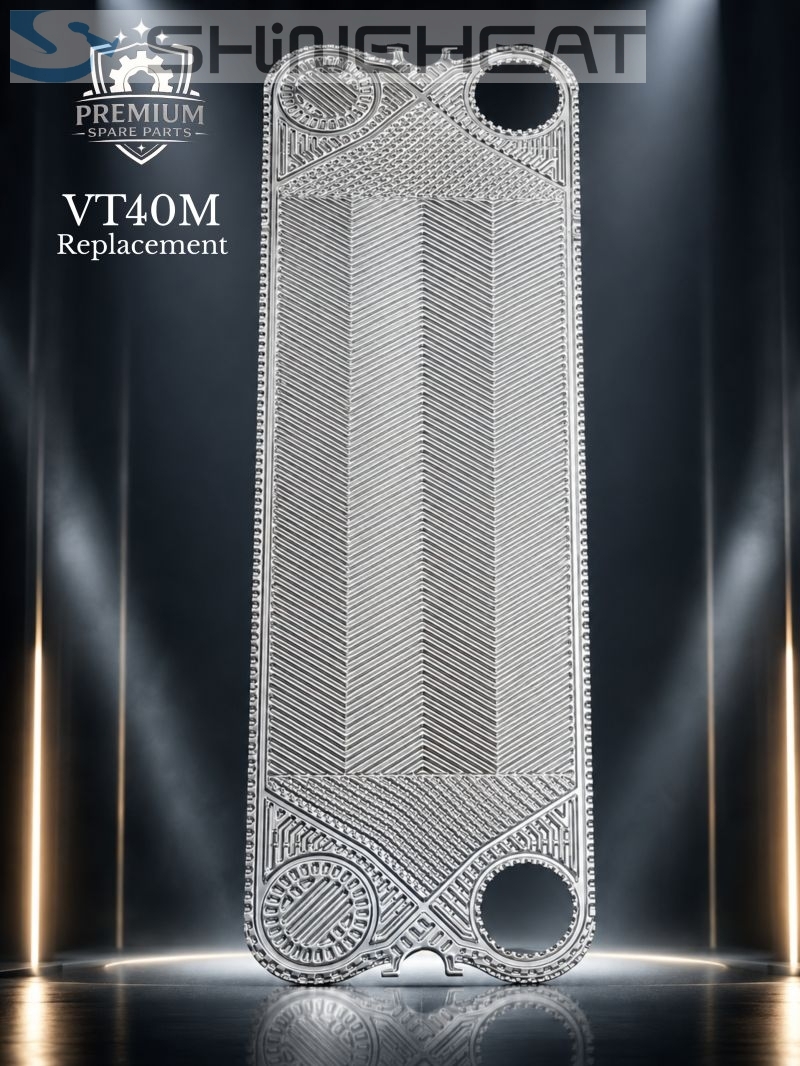

The LinkedIn product image identifies a VT40M replacement plate. SHINEHEAT's existing GEA / Kelvion directory lists the corresponding reference as VT40(M). Include both the equipment nameplate and the plate marking in your enquiry.
VT40, VT40(M), VT405-New and VT405-Old are separate entries in the directory. Similar model names do not establish interchangeability. Port layout, gasket groove, pressing profile and plate dimensions must match the installed pack.
| Reference | VT40(M) |
|---|---|
| Groove depth | 3.2 mm |
| Port / hole diameter | 115 mm |
| Hole pitch | 1127 x 257 mm |
| Plate outline | 1400 x 424 mm |
| Published transfer area | 0.5 m² |
These values are retained from the existing SHINEHEAT model directory as identification references. Verify them against the actual plate or approved drawing before manufacture; they are not a thermal selection or guaranteed interchangeability statement.
Send a close-up of the gasket attachment and groove, the material marking and the process conditions. Compound, hardness and profile must be confirmed separately from the plate model.
Start with the information available. SHINEHEAT can review it and identify the remaining checks before confirming the supply scope. A model name or promotional image alone is not a dimensional or performance guarantee.
Request a quotationBrowse replacement partsManufacturer names and model references identify the equipment to be reviewed. SHINEHEAT is an independent aftermarket supplier and does not claim OEM affiliation.
