Spare Parts -SPX APV

INQUIRY PDF Format

Description

Introduction

SPX FLOW-APV Plate Heat Exchanger is widely used in various industries for transferring heat between two fluids. It is a highly efficient and compact design that requires minimal maintenance. However, like any other mechanical equipment, regular maintenance and repair are essential for optimal performance. Replacement spare parts are vital in maintaining and repairing SPX FLOW-APV Plate Heat Exchanger.

We will focus on replacement spare parts for SPX FLOW-APV Plate Heat Exchanger, their technical features, and how Shineheat Tech Corp is the main market player for supplying a full range of replacement spare parts.Technical Features of SPX FLOW-APV Plate Heat Exchanger. SPX FLOW-APV Plate Heat Exchanger is designed with various technical features that ensure efficient heat transfer and easy maintenance. The following are some of the technical features of the SPX FLOW-APV Plate Heat Exchanger.

1. Plate Design
The Plate design is critical in determining the rate of heat transfer and the amount of energy used. The Plate design of the SPX FLOW-APV Plate Heat Exchanger is optimized for high heat transfer efficiency. The Plate's design is a combination of herringbone patterns, chevron patterns, and asymmetric channels that create a highly turbulent flow that maximizes the heat transfer surface area.

2. Gasket Design
The Gasket design is essential in ensuring that the fluid flow in the Plate Heat Exchanger is well defined and leak-proof. The Gasket design of the SPX FLOW-APV Plate Heat Exchanger ensures that the Plate's seal is maintained even in high pressure and temperature environments. The Gaskets are made of high-quality materials that are FDA approved and provide excellent chemical resistance.

3. Frame Design
The Frame design of the SPX FLOW-APV Plate Heat Exchanger is robust and durable. It is designed to withstand high pressure and temperature environments. The Frame's design allows for easy Plate removal, which makes maintenance and replacement of spare parts easy.

Replacement Spare Parts for SPX FLOW-APV Plate Heat ExchangerRegular maintenance and repair are essential for the optimal performance of the SPX FLOW-APV Plate Heat Exchanger.

Replacement spare parts play a critical role in maintaining and repairing the Plate Heat Exchanger. In this section, we will focus on the replacement spare parts for the SPX FLOW-APV Plate Heat Exchanger.

1. Plate
The Plate is the core component that transfers heat between the two fluids in the Plate Heat Exchanger. SPX FLOW-APV Plate Heat Exchanger requires high-quality Plates that are designed to meet the technical specifications of the Original Equipment Manufacturer (OEM).Shineheat Tech Corp offers a full range of Plates for the SPX FLOW-APV Plate Heat Exchanger. The Plates are made of high-quality materials that are corrosion-resistant and provide excellent heat transfer efficiency.

Applicable Material for Plates of Plate Heat Exchanger
For raw material steel sheet, SHINHEAT only select Qualified Steel Mill as specifed as following chart, not allow any low quality raw material in production.
For Specific Material Certificate, please contact with SHINEHEAT to obtain.

2. Gasket
The Gasket is the component that forms the seal between the Plates in the Plate Heat Exchanger. The Gaskets are essential in ensuring that the fluid flow is well defined and leak-proof.Shineheat Tech Corp offers high-quality Gaskets that are designed to meet the technical specifications of the OEM. The Gaskets are made of FDA approved materials that provide excellent chemical resistance.

SUPPLY LIST FOR APV GASKETS

Applicable Material for Gaskets of Plate Heat Exchanger

3. Frame
The Frame is the component that holds the Plates and Gaskets together in the Plate Heat Exchanger. The Frame's design is critical in ensuring that the Plate Heat Exchanger operates optimally.Shineheat Tech Corp offers high-quality Frames that meet the technical specifications of the SPX FLOW-APV Plate Heat Exchanger. The Frames are made of robust and durable materials that can withstand high pressure and temperature environments.

Regular maintenance and replacement of spare parts are essential in ensuring the optimal performance of the SPX FLOW-APV Plate Heat Exchanger. Shineheat Tech Corp is the main market player for supplying a full range of replacement spare parts for the SPX FLOW-APV Plate Heat Exchanger. Our replacement spare parts are designed to meet the technical specifications of the Original Equipment Manufacturer and provide high heat transfer efficiency. Choosing the right manufacturer for the replacement spare parts ensures that the SPX FLOW-APV Plate Heat Exchanger operates optimally and provides efficient heat transfer. With Shineheat Tech Corp, you can be sure of getting the best replacement spare parts for your SPX FLOW-APV Plate Heat Exchanger.

Spare Parts for Spx-APV Plate Heat Exchanger (No mini order quantity, begin with ONE piece order!)

Identical repalcement Spx-APV Plates and Gaskets are available for service and mantainance, Spx-APV 100% identical plate heat exchanger also could be customzied produced.

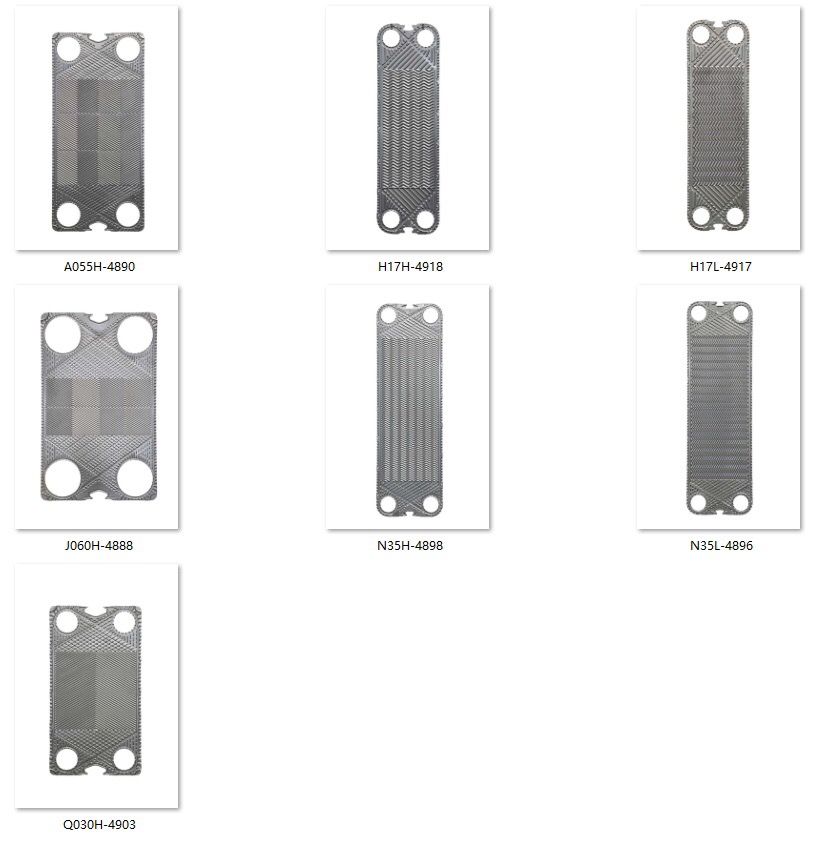

SPX-APV PLATE SPECIFICATION
Brand	Model	Depth of Groove (mm)	Dia. of Plate Hole (mm)	Pitch of Plate Hole (mm)	Outline Dimension (mm)	Transfer Area （㎡）
APV	T4	2.5	φ32	381*70	450*140	0.04
	H12	3	φ74	620*150	738*266	0.14
	H17	3	φ74	800*150	920*271	0.17
	N35	2.8	φ85	1069*238	1203*371	0.36
	N50	2.8	φ85	1483.4*238	1620*373	0.5
	N25	2.8	φ85	793.4*238	930*373	0.25
	R8GI	3.6	φ148	1525*334	1737*546	0.78
	TR9-III	3.2	φ200	1033*409	1291*670	0.54
	TR9-II	3.2	φ200	1465*409	1723*670	0.86
	TR9-I	3.2	φ200	1879*409	2155*670	1.18
	TR9	3.2	φ200	2329*409	2587*670	1.5
	Q030E-Low Groove	3	φ114	743*310	920*496	0.32
	Q030-Deep Groove	4.2	φ112	743*310	920*492	0.31
	Q055E-Low Groove	3	φ114	1238*310	1415*496	0.55
	Q055-Deep Groove	4.2	φ112	1238*310	1415*492	0.57
	Q080E-Low Groove	3	φ114	1757*310	1934*496	0.8
	A055	3.2	φ150	1057*380	1271*595	0.55
	A085	3.2	φ150	1531*380	1745*595	0.85
	A145	3.2	φ150	2479*380	2693*595	1.45
	J060	3	φ229	915*465	1192*746	0.6
	J092	3	φ229	1290*465	1567*746	0.92
	J107	3	φ229	1477.5*465	1755*746	1.07
	J185	3	φ229	2415*465	2692*746	1.85
	R10	9.6	φ197	1684*432	1986*712	1.2
	R8	3.6	φ148	1525*334	1737*546	0.75
	SR6-AG	3.8	φ102	1891*314	2053*476	0.9
	SR6-GL	3.8	φ102	1256*314	1418*476	0.56
	R5	5.4	φ101.4	1397*257	1556*420
	SR2	2.6	φ63.5	700*180	838*298	0.2
	UX40	3.6	φ190	1520*360	1771*615	0.89
	UX80	4.55	φ235	1860*630	2268*1038	1.8
	K71	4	φ115	1552.5*310	1730*487	0.75
	K55	4	φ115	1237.5*310	1415*487	0.59
	K34	4	φ115	832.5*310	1010*487	0.37
	M107	2.8	φ229	1477.5*465	1752.5*747	1.07
	M092	2.8	φ229	1290*465	1565*747	0.92
	M060	2.8	φ229	915*465	1190*747	0.6

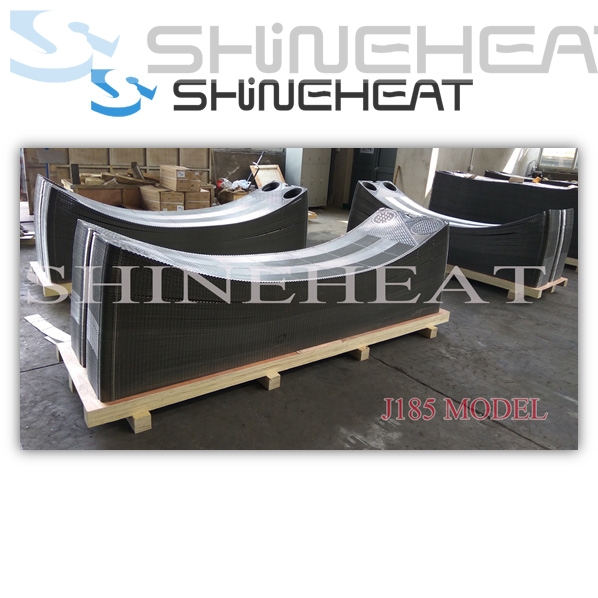

APV J185 Model Plates are ready to delivery

Cooler Plate for Engineer Cooler in Marine Application,
Type/Year: J107/2001. Serial No:52989
Cooler Plate- 0.5mm ASTM B265 Gr1, Paraclip
Gasket R/L MNR std, Paraclip

Refurbishment Plates and Gaskets for Loop Jacket Water Cooler in Power Plant of UAE
Type: S190 MGS-15/3 SPX Serial Number：504940
Service: Loop JW Cooler
Order Qty:493 EPDM Gaskets

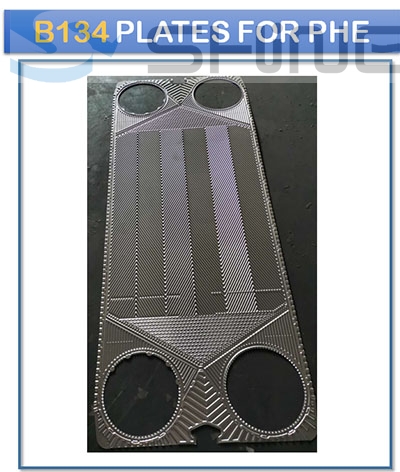

B134 Plates and Gaskets for Plate Heat Exchanger
B Type Plate is Efficient Plates with regular corrugated groove of APV, it is flexible for most applications like HVAC.

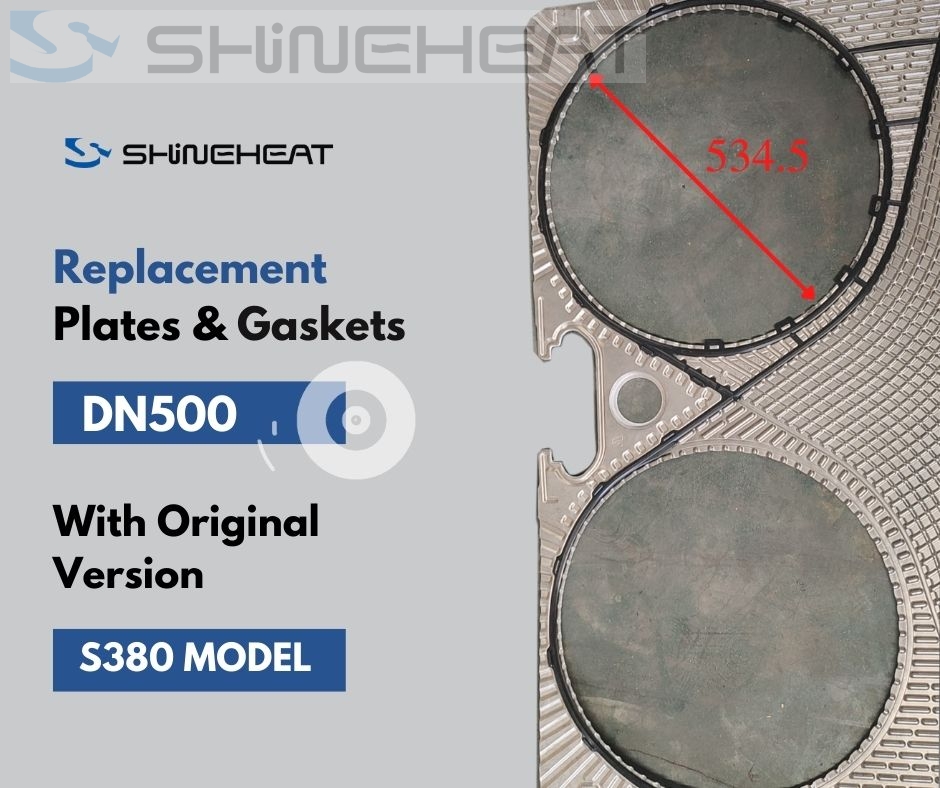

S380 Plates and Gaskets for Plate Heat Exchanger
S380 Model Plate Heat Exchanger is largest one for SPX APV, the Max mounting Plates transfer area is 3500 m²
the Max capacity it could handle is 4500m³/h, S380 model Plate Heat Exchanger is specially apply for Power Plant, Sea Water Desalination projects which need high capacity thermal transfer process.

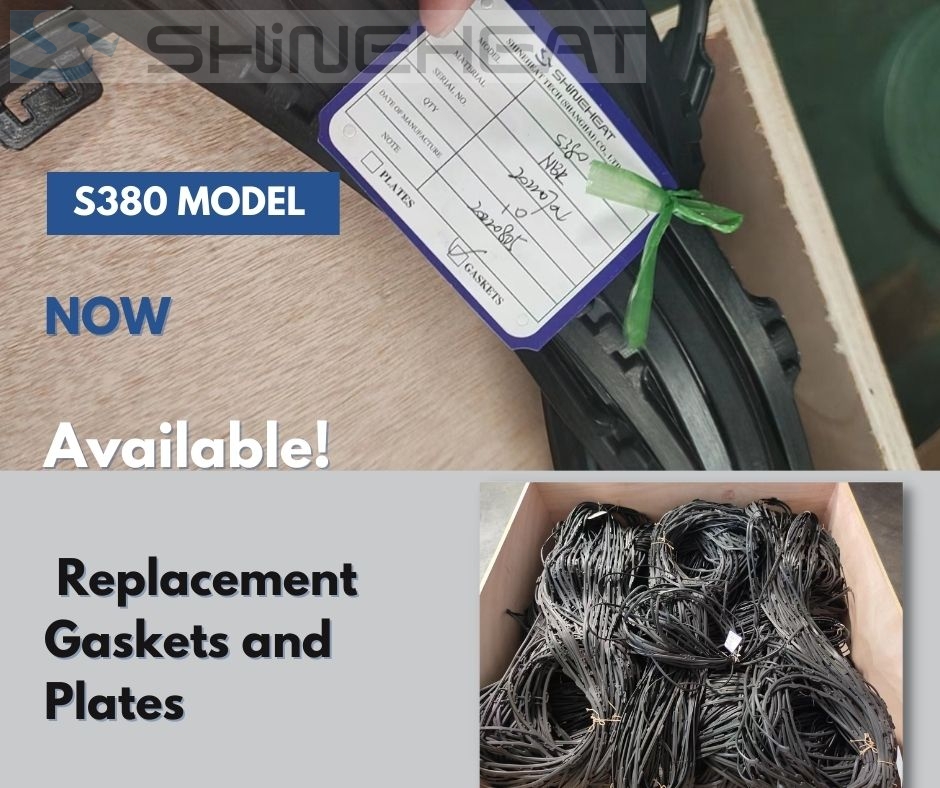

We could provide replacement or refurbishment Plates and Gaskets for S380 Model Plate Heat Exchanger at prompt delivery time.

Wide Gap & Free Free Plates and Gaskets for Plate Evaporators

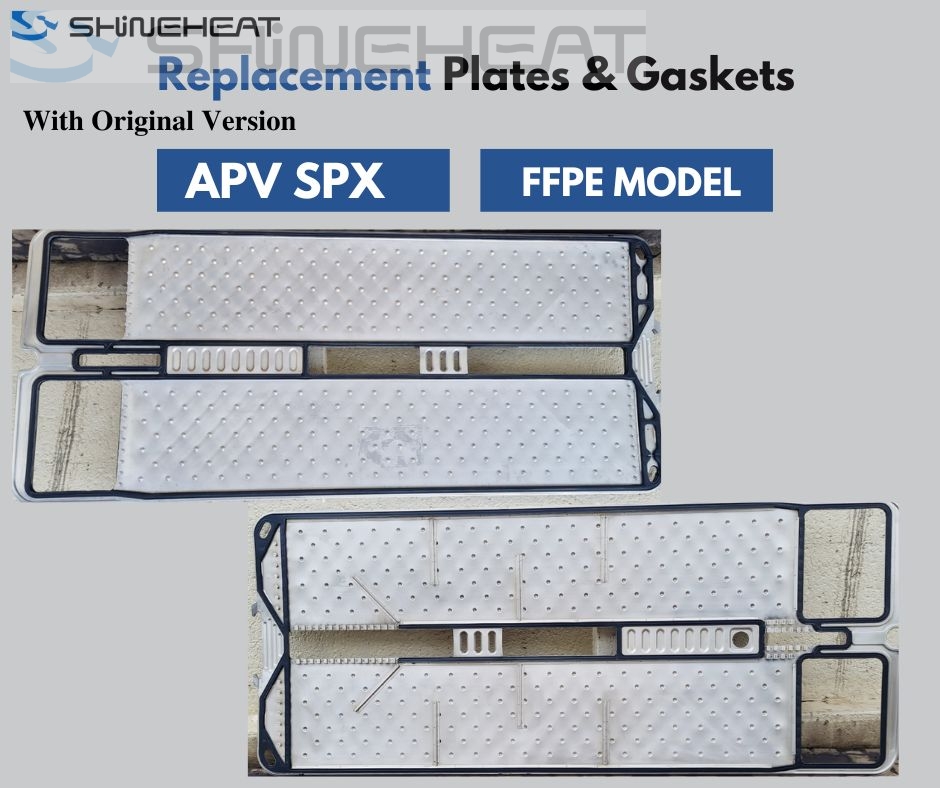

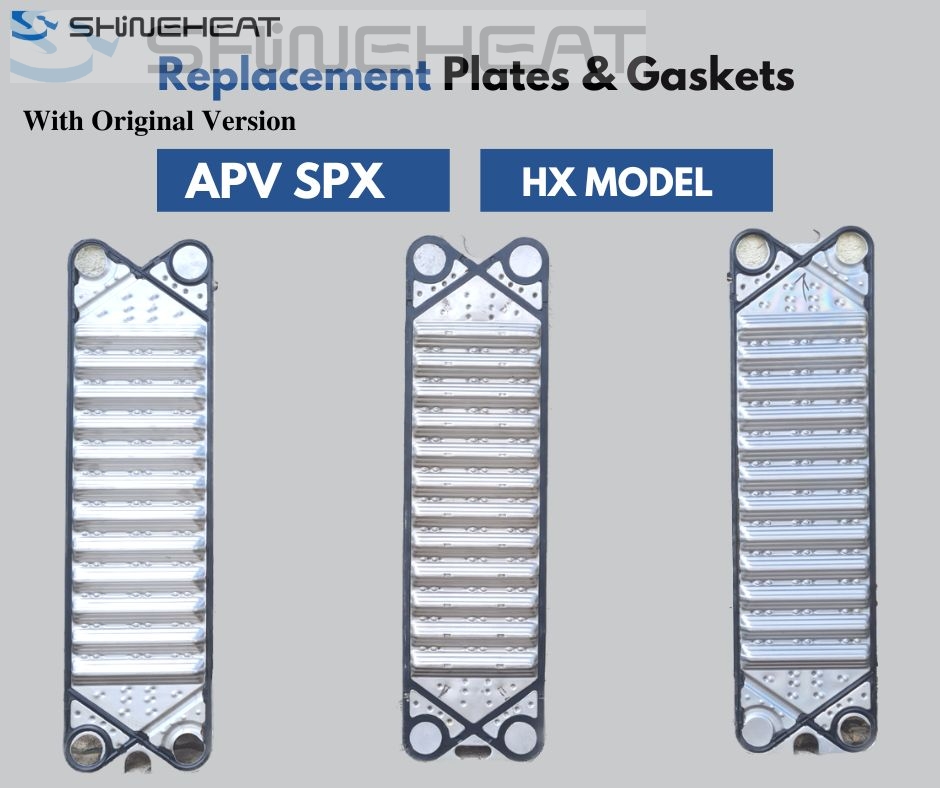

HX and FFPE Model Plates and Gaskets Typically design for SPX FLOW & APV Plate Evaporators which differ by industry in such characteristics as physical properties, stability, or precipitation of solid matter.These APV plate evaporation systems are made in four arrangements –rising/falling film, falling film, Paravap, and Paraflash.

Spare Parts selection Tips for APV SPX FFPE Model
1. FFPE Gaskets have different gaskets for "Product Side" and "Steam Side", and their material are different in common condition.
Generally, the "Steam Side" will work for high temperature steam, always we select FKM or HEPDM gasket material; "Material Side" will be EPDM or NBR Material in food class.

2. The FFPE Gaskets For "Material Side" also have two different model, called " Narrow Gap" and "Wide Gap" Seperately.
Generally, the thickness for " Narrow Gap" and "Wide Gap" of FFPE Product side are different, the thickness for " Narrow Gap" is 9.3mm, and for "Wide Gap" is 13mm

So please contact with us for consulting before select the FFPE spare parts for APV SPX plate evaporator

APV SPX SR3 PLATE AND GASKET
P&G ASY SR3 (50) FLOW R1234(0000) plate and gasket
P&G ASY SR3 (100) FLOW R1234 (0000) plate and gasket
